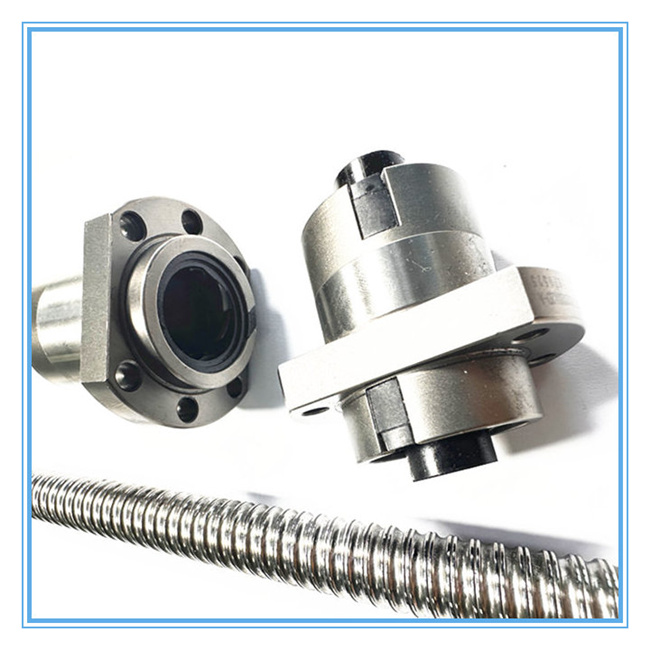

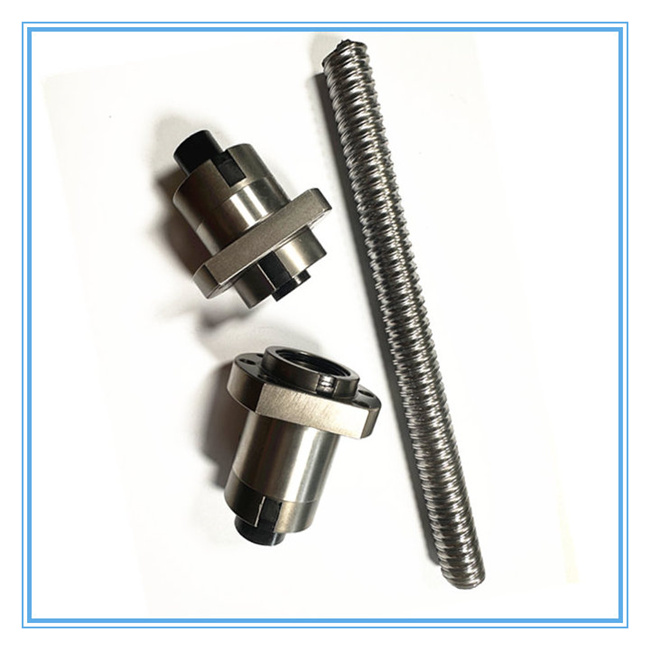

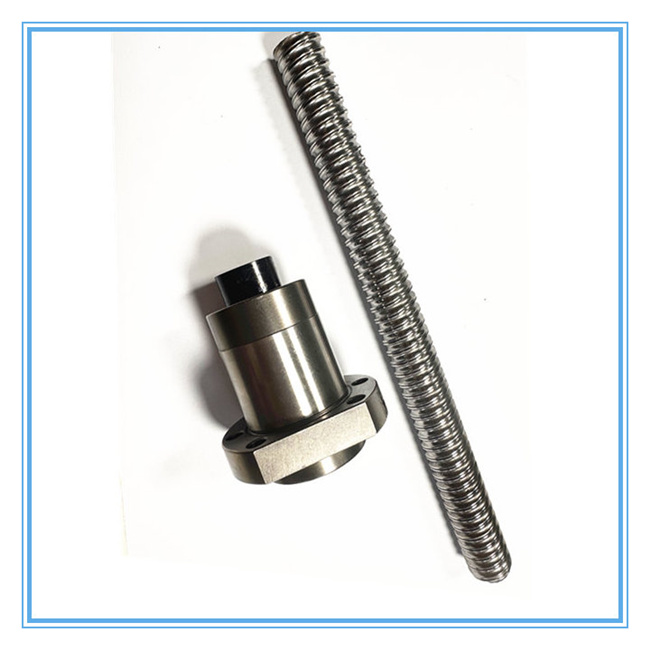

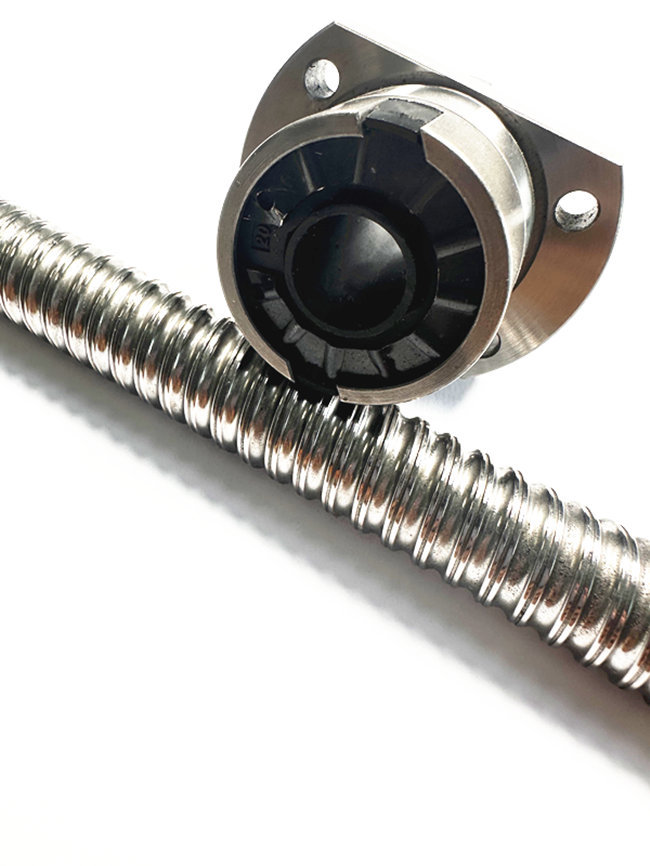

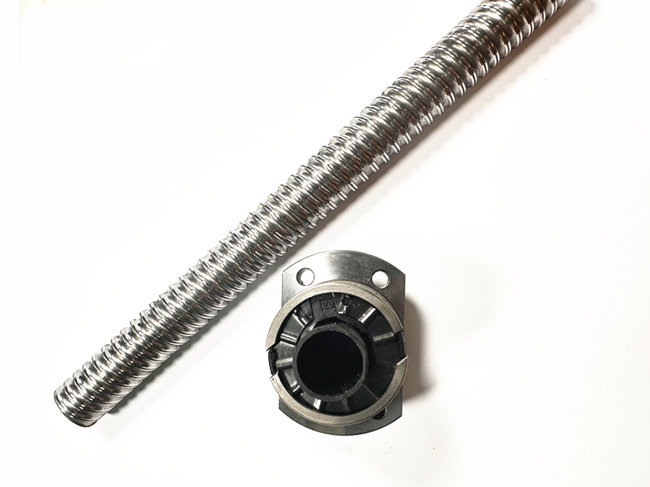

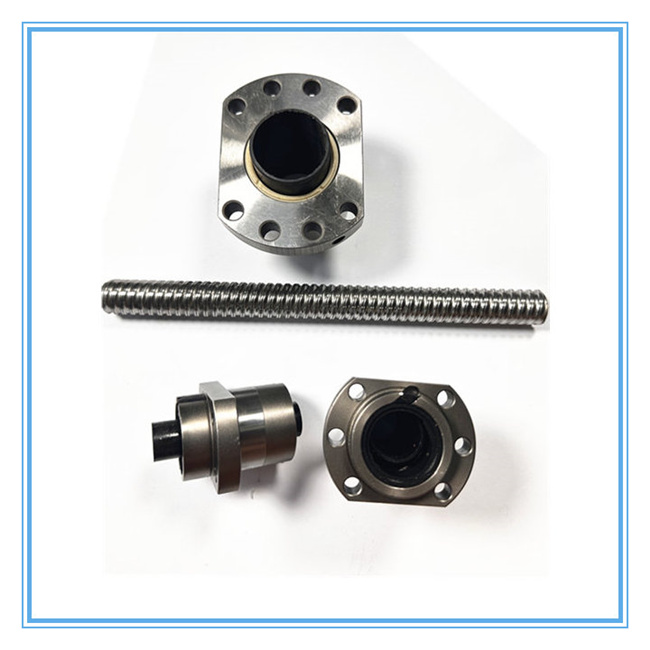

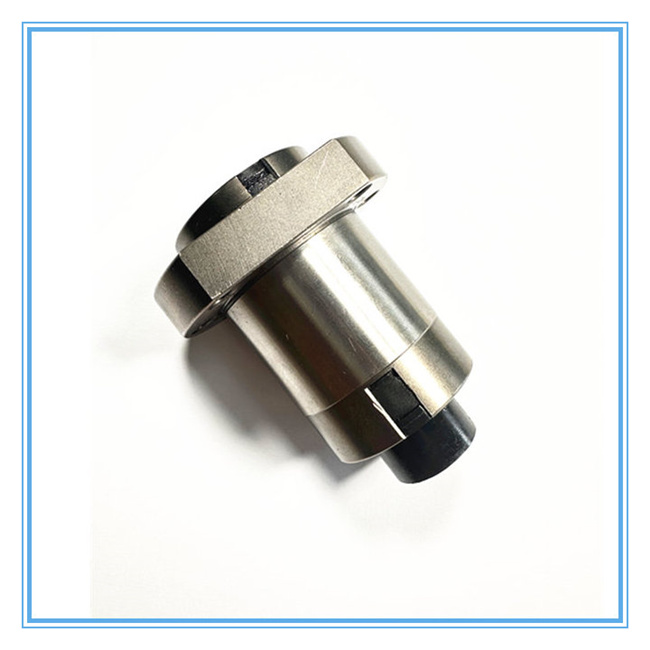

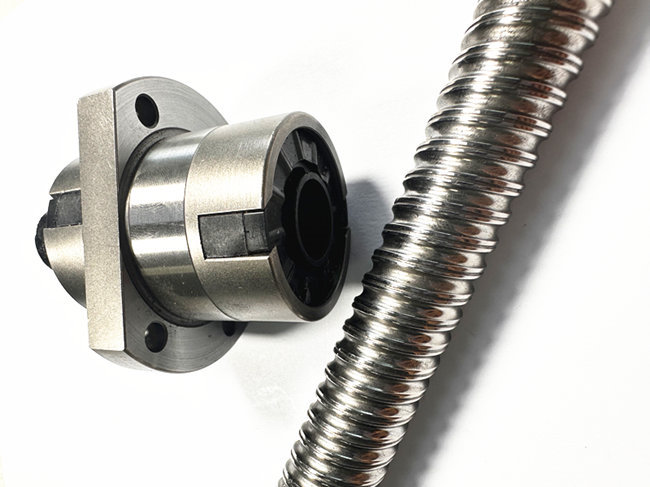

sfu1605 ball screw is one of the common mechanical parts.Its main function is to convert the rotary motion of the motor into linear motion.Generally speaking, the length of the sfu1605 ball screw is greater than thestroke required for movement,

so that the ball screw can reciprocate within the safe stroke.

        The  sfu1605 ball screw must be kept clean and protected with anti-rust oil.Special attention should be paid not to allow sharp objects or tools to hiTthe tooth surface and not to allow any iron filings to enter the inside of the nut; and when assembling the shaft The outer diameter of the end should not be damaged by collision or scratches.Select a ball screw with a suitable accuracy level and install it according to the standard assembly procedures.

        To make the ball screw reach the maximum service life, sfu1605 ball screw grease must be kept filled on the steel balls and ball grooves. Either the oil bath type or the dripping type oiling method can be used, but direct oiling into the nut is better. Pay special attention when installing the sfu1605 ball screw on the machine.Do not knock the nut or bent pipe. At the same time, do not allow the nut to separatefrom the screw or over-travel - part of the nut's stroke leaves the screw.

        If so, it will Cause the steel ball to escape from the ball groove.Choose a suitable shaft end support bearing combination.On CNC machine tools, it is recommended to use bevel bearings (bevel angle: 60°).
