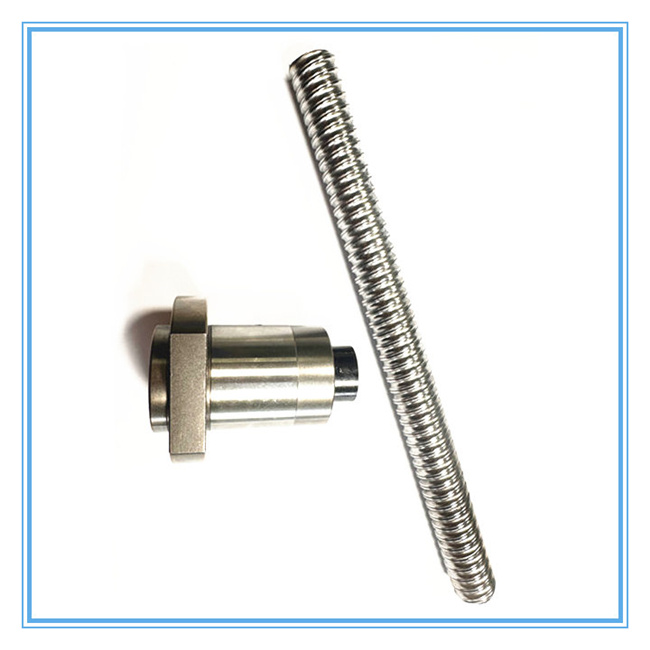

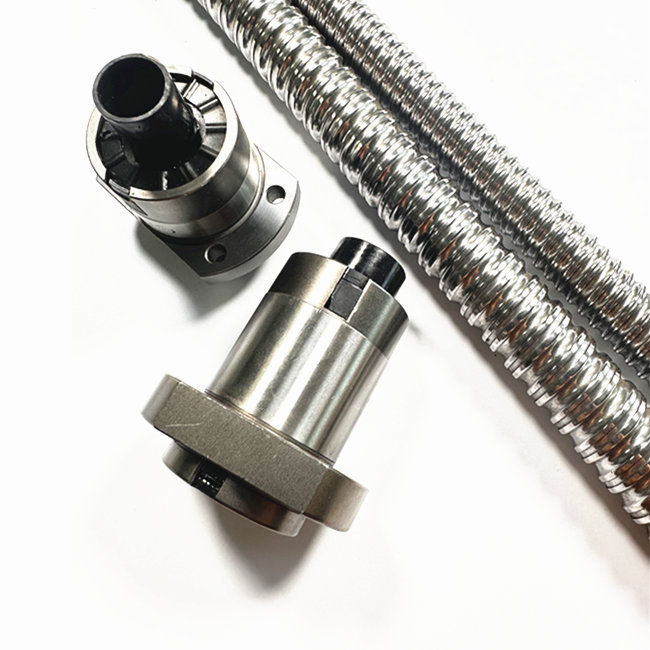

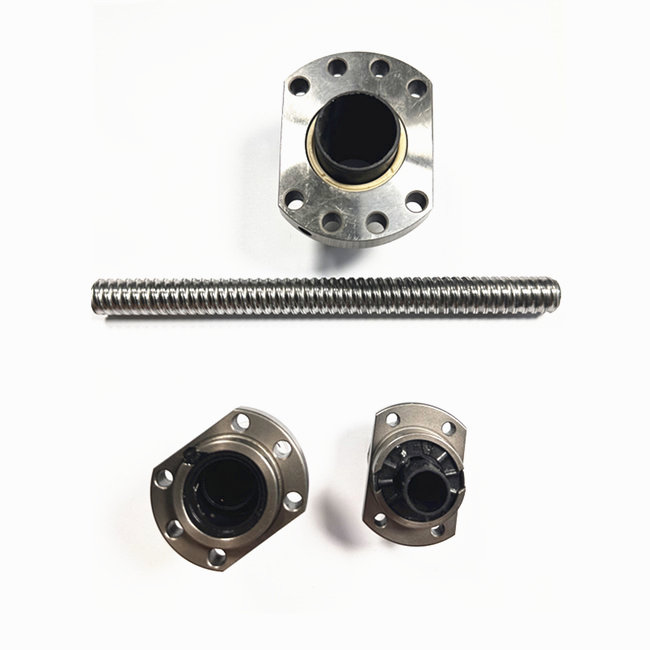

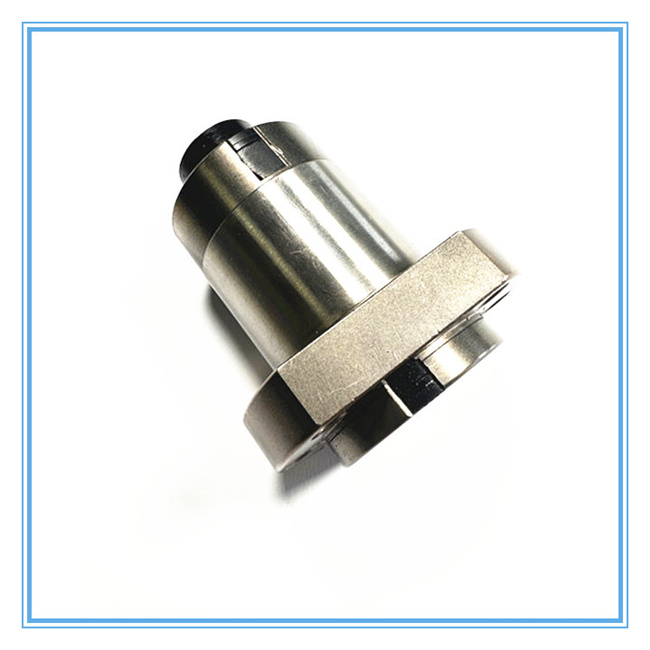

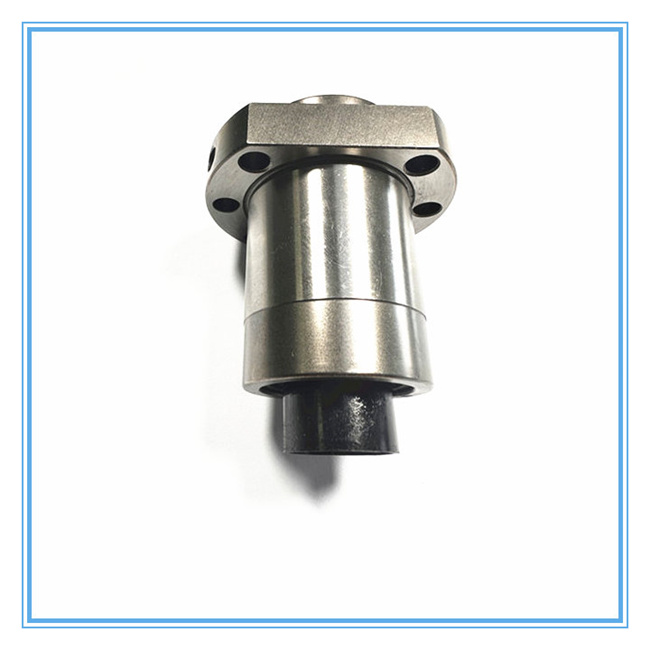

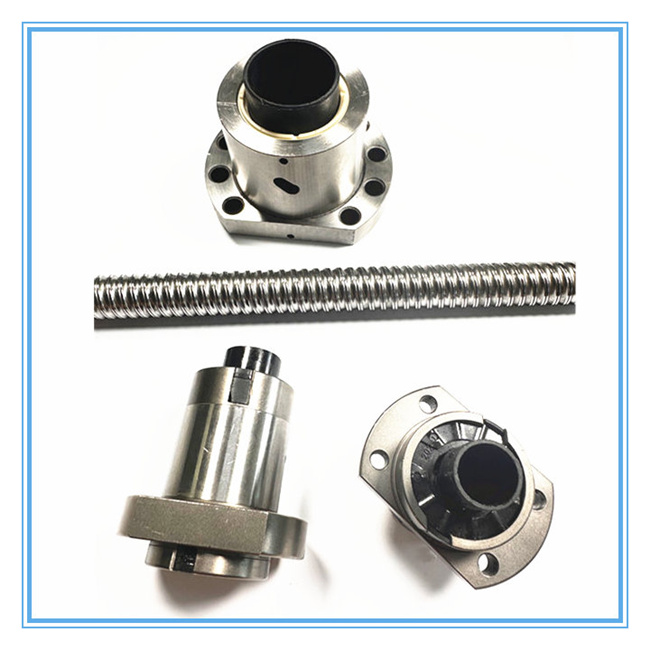

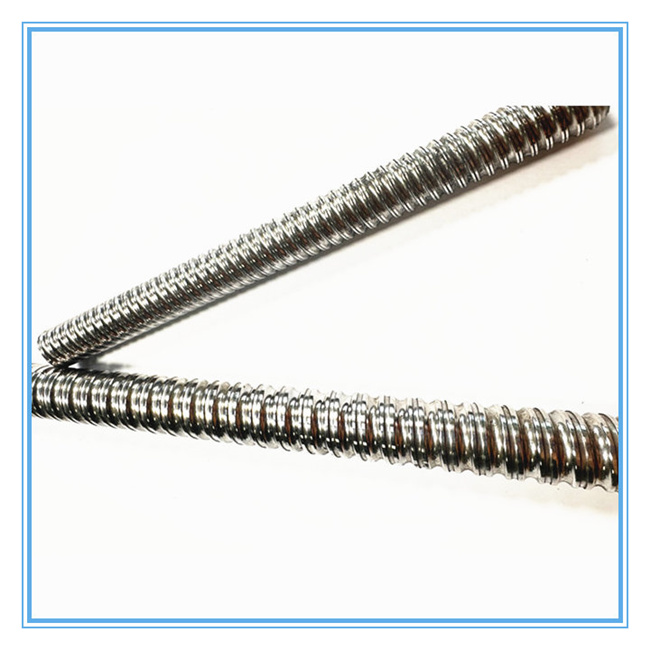

High precision Miniature lead screw 1616 ball screw linear motion ball lead screw
1. Process :Cold rolling ball screw;
2. Ball nut inner diameter :16mm
3. Bll screw outer diameter :16mm
4. Pitch:16mm
5. Lead time ：stock goods
6.Precision :C5 C7 precision
1616 ball screw feed system sensitivity, positioning accuracy and prevent creeping, ball screw must reduce the friction of CNC machine tool feed system and reduce the difference between static and dynamic friction coefficients. Therefore, 1616 ball screw linear motion organization with not too long stroke often uses ball screw nut pair.
1616 ball screw is a new transmission device that converts linear motion and reverse motion. ball screw can eliminate reverse clearance and apply preload, which helps to improve positioning accuracy and rigidity.The friction between 1616 ball screw and ball nut is very small. If the non-preloaded ball screw is placed vertically, the 1616 ball screw nut will fall off the screw due to its own weight to prevent the roller nut from falling.
Therefore, it is necessary to prevent the non-preloaded ball screw organization from being in a vertical state. When 1uses ball screw vertically,it is recommended to prevent the workbench from falling by setting up protective structures such as safety nuts.
| Product name | 1616 ball screw |
| Ball screw outer diameter: | 16mm |
| Standard Model | SFU/DFU/SFI/DFI /SFS/SFNU/SFY/SFE |
| Material | stainless material , bearing steel-GCR15material |
| Production process: | cold rolling, |
| Precision | C5 C7 precision |
| Ball nut tyope | single nut on the screw |
Product details
